Rack and Panel Connectors

ITT Cannon's range of Rack and Panel / ARINC connectors provide high-speed signal, power and data connectivity ideal for commercial and military aerospace and avionics.

Talk to the team at Aerco about selecting the right ITT Cannon connector for your needs.

Download the ITT Cannon Rack and Panel catalogue here:

ITT Cannon Rack and Panel Catalogue.

Rack & Panel Connectors

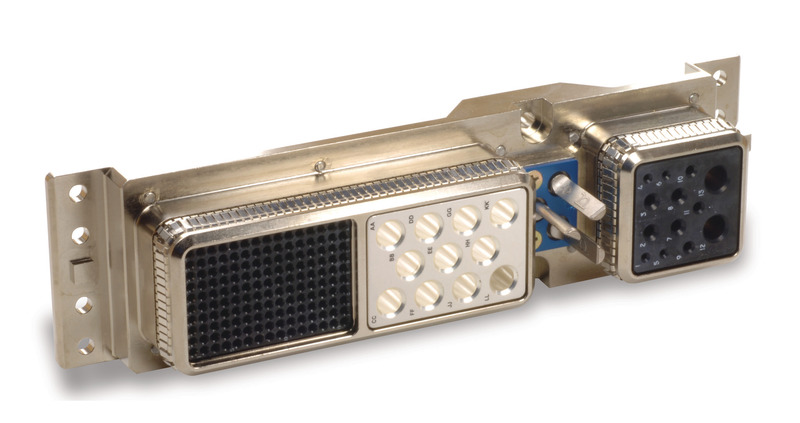

BKA C/D/E/F/X ARINC 600:

Available in 3 and 6 gang configurations and designed for Blind Mate applications
Operating temperature: -65°C to +125°C
Contacts to MIL-C-39029 standard
Front Release/Front Removable or Rear Release/Rear Removable contacts
Suitable for Defence, Aerospace, IFE and Cabin Systems, Avionics and Control Systems, Military Aviation

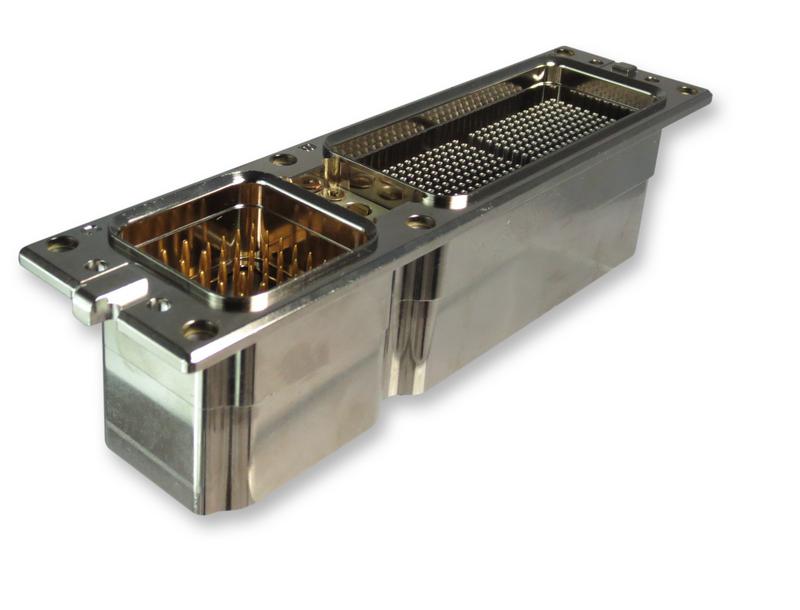

ARINC 600 Rack & Panel Filter Connector TBKAD:

Meets all the standards and requirements of ARINC 600. with system-level EMI protection
Up to 800 size 22 contacts in one connector
Low insertion force contacts
Crimp, co-ax, power, printed circuit, and wire wrap post style contacts
Ideal for navigation systems, radar systems, avionics, flight control systems, flight management and TCAS

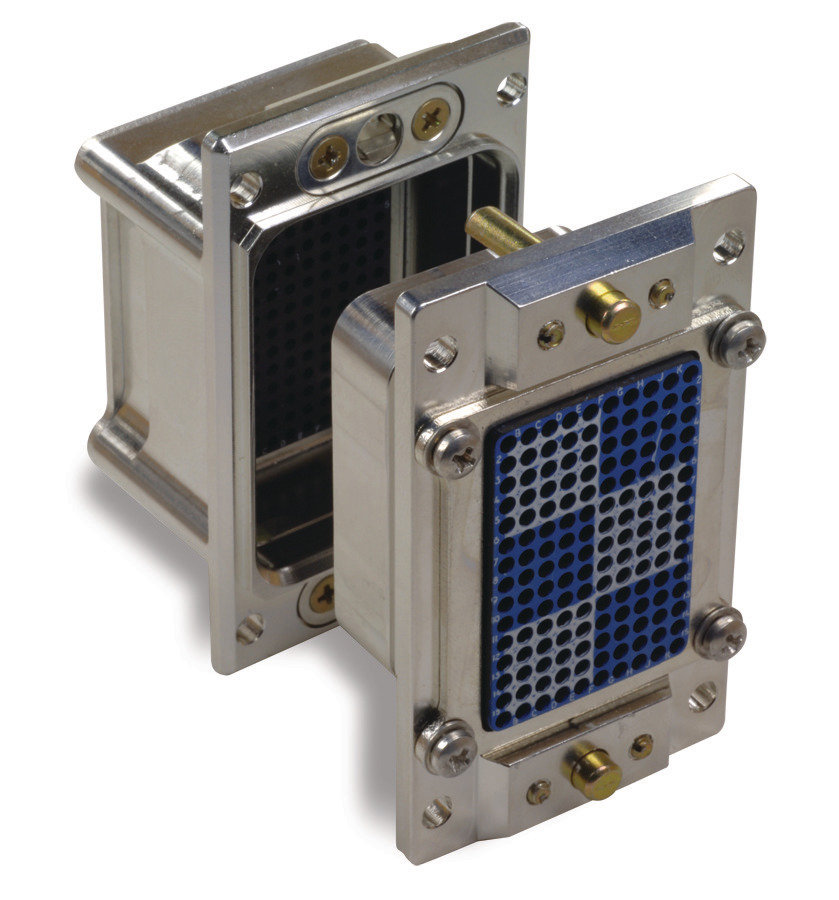

SGA ARINC 600:

Single gang version of ARINC 600, suited for applications with space constraints
150 contacts in space-saving shell size
Utilises standard ARINC 600 contacts & inserts
For use in Aerospace, IFE and Cabin Systems, Avionics and Control Systems

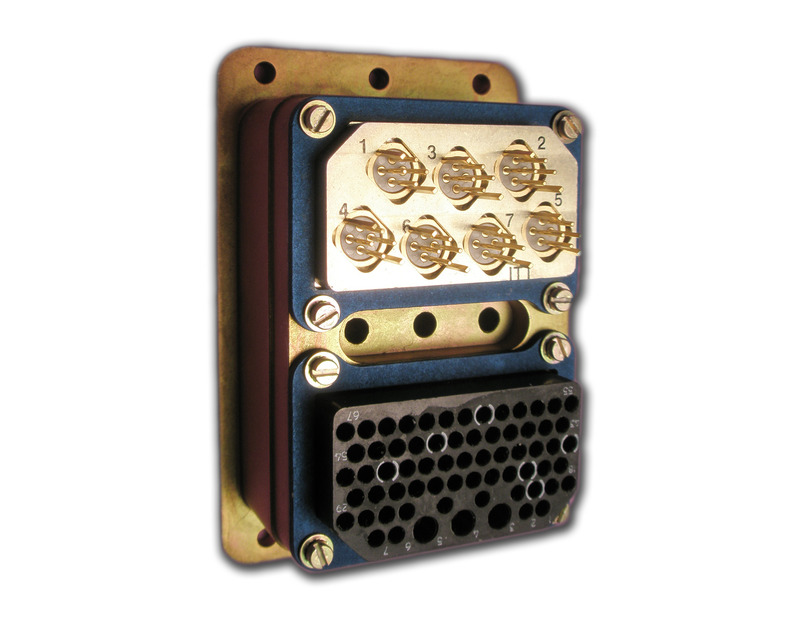

DPX ARINC 404 Rack & Panel:

Miniature Rack and Panel connector designed for Blind Mate applications
Features the LITTLE CAESAR contact assembly for rear insertion, release and extraction of crimp type contacts
Available in single, two, three and four gang versions and can accommodate up to 424 contacts
Meets requirements for MIL-G-45204
Suitable for Aerospace, IFE and Cabin Systems, Avionics and Control Systems, Space, Military Aviation

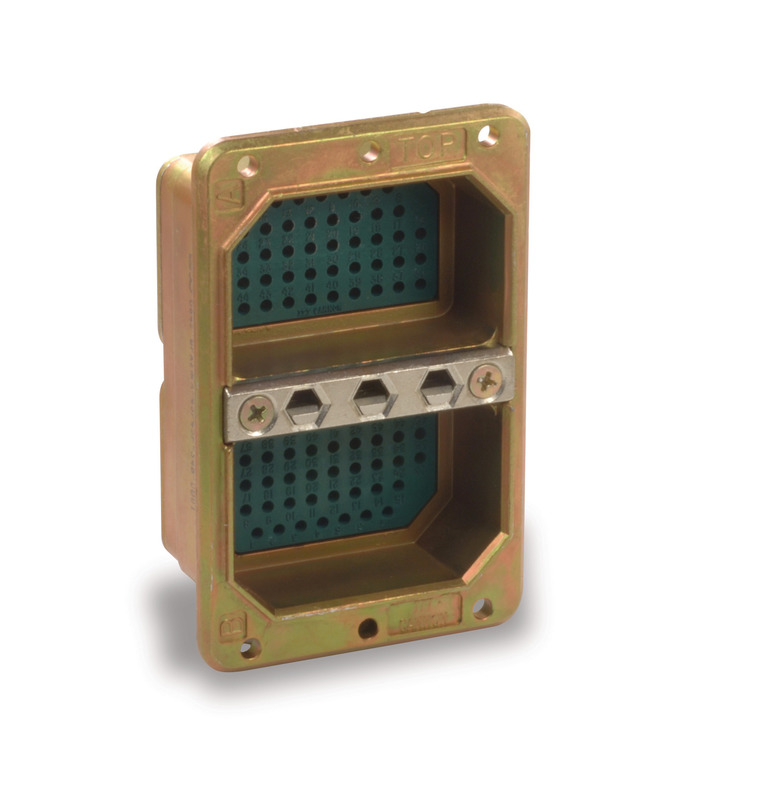

TDPX Filtered ARINC 404 Rack & Panel:

Filtered connectors against Noise and EMI
ARINC 404 and Mil-C-81659 compatible
High density Pi and C filter designs
Applications include Defence, Aerospace, Military Ground Vehicles, Avionics and Control Systems, Military Aviation

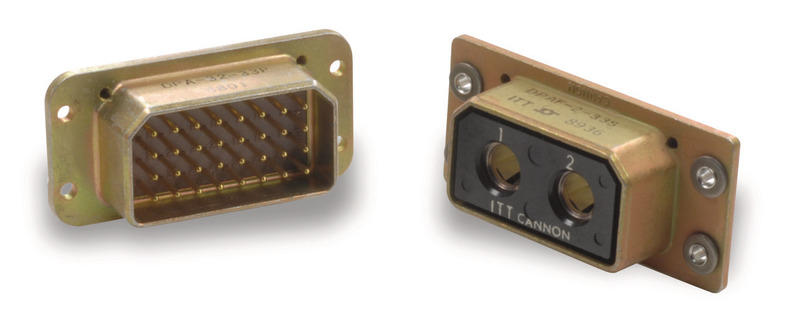

DPA Rack and Panel:

Rugged, miniature, blind mate connectors
The operating temperature -55C to +125C
Single Gang configurations featuring standard shells (DPA), float mount shells (DPAF), large flange shells (DPAL), or Little Caesar rear release contact assembly (DPAMA)
For use in Aerospace, Avionics and Control Systems

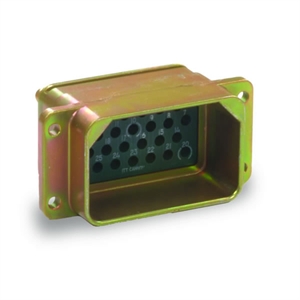

DPXNE-NA MIL-C-81659:

DPXNA (non-environmental, Type IV) and DPXNE (environmental, Types II and III) blind mate connectors
Single to Multiple Gang configurations
Meets requirements of MIL-C-81659, Revision B
Shell Aluminium Alloy and shell plating cadmium with yellow chromate
Environmental sealing by wire sealing grommets and interfacial seals
Operating temperatures: -65°C to +125°C
For use in Defence, Aerospace, Avionics and Control Systems, Space

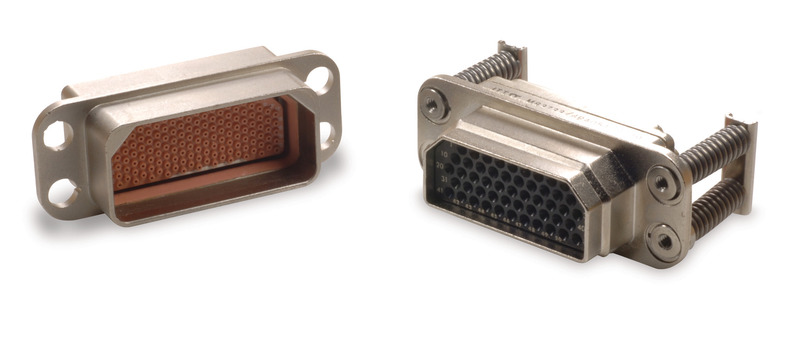

DPK 83733 Style:

High performance rack & panel connector with environmental sealing
Crimp snap-in contacts with rear release contact retention assembly
Operating temperatures: -65°C to +200°C
Shell aluminium alloy and shell plating electroless nickel plate or olive drab cadmium
Comparable with MIL-C-83733 (USAF) requirements (not QPL)
Moulded integral PCB stand-offs
Applicable to Defence, Aerospace, Smart Weapons and Ordnance, Avionics and Control Systems, Space

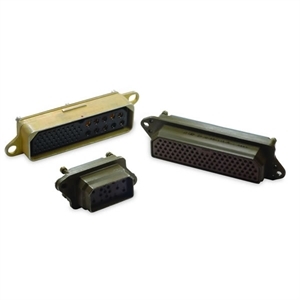

DPGM, DPJM, and DPJMB:

Rack & Panel blind mate connectors with weight and space saving designs
DPGM and DPJM connectors feature crimp snap-in contacts with ring-type retention
DPJMB connectors feature rear release contact retention assembly
Single gang configurations available
Shell aluminium alloy and shell plating cadmium plate or olive drab chromate
Suitable for Defence, Aerospace, Smart Weapons and Ordnance, Avionics and Control Systems, Space, Military Aviation
