Honeywell Board-Level Pressure Sensors

Honeywell board-level pressure sensors cover ranges from 0 psi to 250 psi. The design has four piezoresistors on a chemically etched silicon diaphragm. A pressure change causes a strain in the diaphragm and the buried resistors.

See Pressure Sensor Selection Guide for more information

Honeywell Pressure Sensors

MPR Series Pressure Sensors:

60 mbar to 2.5 bar - 6 kPa to 250 kPa - 1 psi to 30 psi
Very small piezoresistive silicon pressure sensor
Digital output
Calibrated and compensated over a specific temperature range
Offset, sensitivity, temperature effects, and non-linearity calibrated using an ASIC
Immune to shock and vibration fretting.
Keying feature for proper mating.

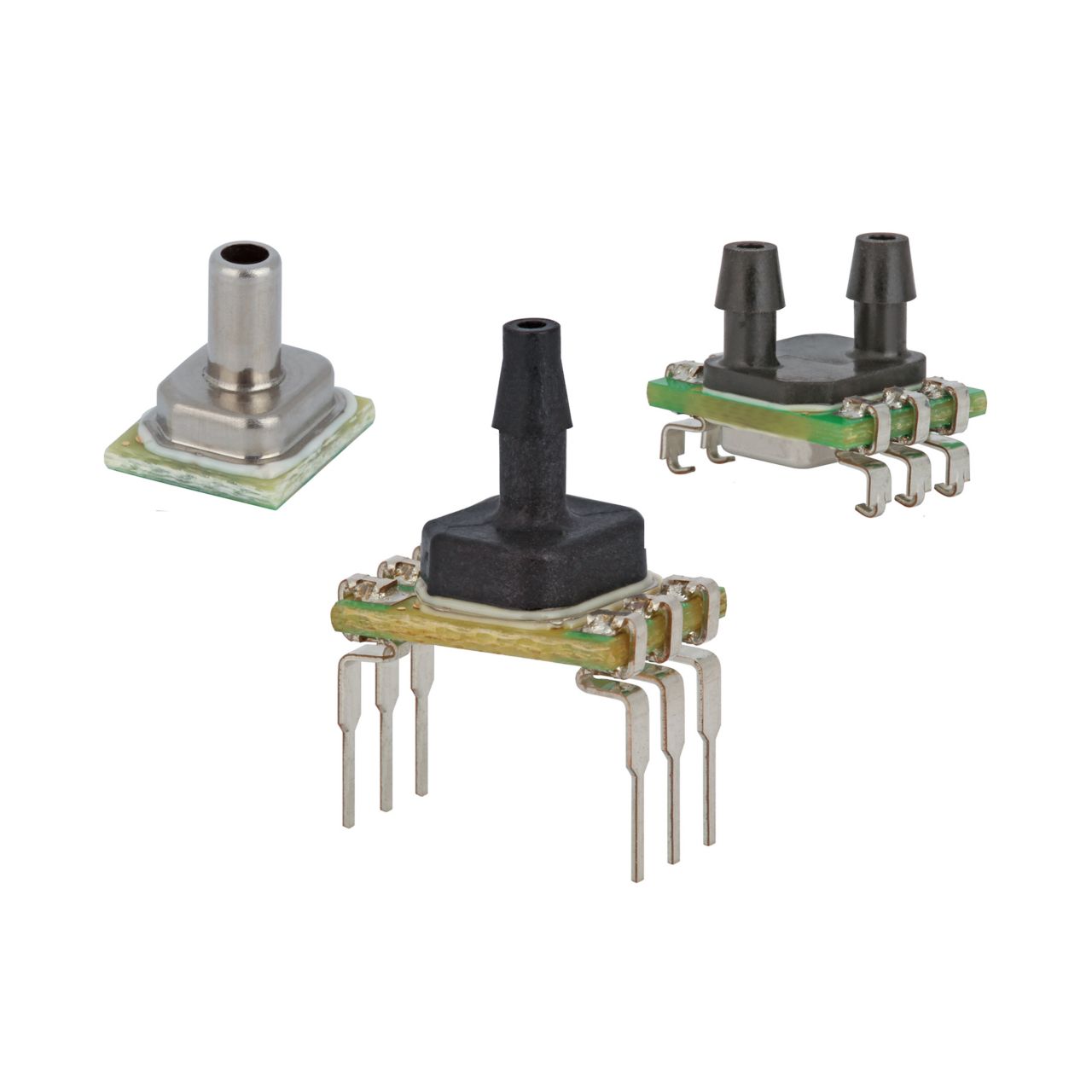

ABP2 Series Pressure Sensors:

6 mbar to 12 bar - 600 Pa to 1.2 MPa - 2 inH2O to 175 psi
Digital or Analogue output.
Calibrated and compensated over a specific temperature range
Liquid media option includes an additional gel coating for non-corrosive liquids.
Tube or Tape and Reel packaging.

RSC Series Pressure Sensors:

±1.6 mbar to ±10 bar - ±160 Pa to ±1 MPa - ±0.5 inH20 to ±150 psi
Digital output
Calibrated and compensated over a specific temperature range
Offset, sensitivity, temperature effects, and non-linearity calibrated using 24-bit analog-to digital converter with integrated EEPROM
for use with non-corrosive,non-ionic gases

TSC Series Pressure Sensors:

Pressure range ±60 mbar to ±10 bar - ±6 kPa to ±1 MPa - ±1 psi to ±150 psi
Analog output
Temperature compensated and unamplified
Differential or guage pressures
Stability and Reliability
Small package size

SSC Series Pressure Sensors:

Wide pressure range ±1.6 mbar to ±10 bar - ±160 Pa to ±1 MPa - ±0.5 inH20 to ±150 psi
Analog or digital output
Temperature compensated
Differential or guage pressures
Stability and Reliability
Low power consumption
Liquid Media Option

HSC Series Pressure Sensors:

Wide pressure range ±1.6 mbar to ±10 bar - ±160 Pa to ±1 MPa - ±0.5 inH20 to ±150 psi
Analog or digital output
High accuracy, compensated and amplified
Differential or guage pressures
Stability and Reliability
Low power consumption
Liquid Media Option
