Amphenol Military Connectors

Amphenol manufacture a large selection of Connectors with Military and Defence qualifications for a wide variety of applications including ground vehicles, communication systems, naval, aircraft and space. All connectors and their derivatives are made to exceptionally high standards and offer excellent performance.

Talk to the team at Aerco about selecting the right Amphenol connector for your needs.

Download the Amphenol Ltd Military and Aerospace brochure here:

PDFAmphenol Military and Aerospace Brochure.

Amphenol 38999 Connectors

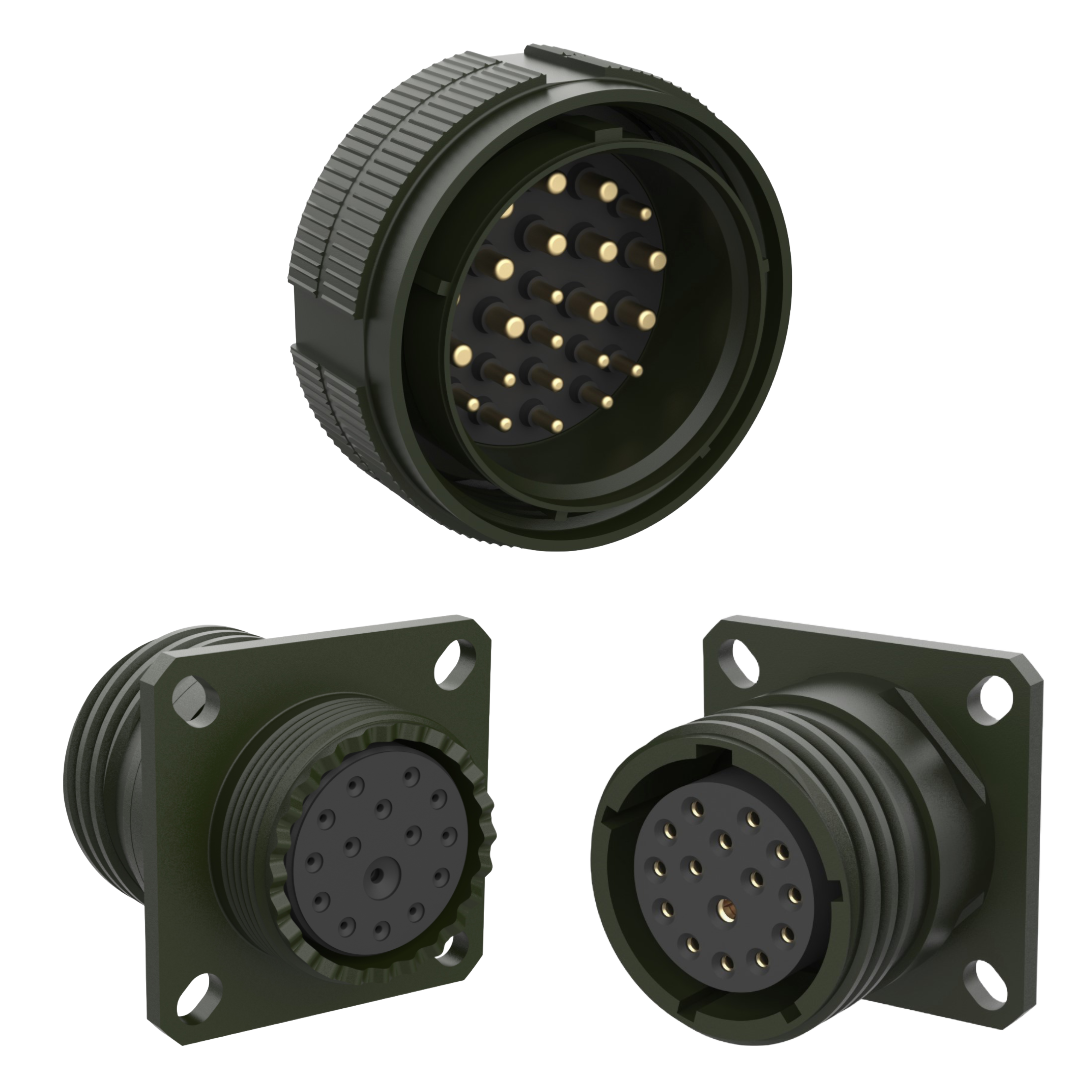

D38999 Connectors:

  • Circular connectors qualified to MIL-DTL-38999
  • QPL approved
  • Operating temperatures: -65°C to +200°C
  • Manufactured from Aluminium alloy with RoHS compliant Black Zinc-Nickel, Electroless Nickel plating finishes and Cadmium Olive Drab plating as standard
  • Stainless Steel, Marine Bronze, Aluminium, Titanium and Composite material options also available
  • Olive drab Cadmium plating, Nickel plating, Black Zinc Nickel plating and other plating finishes on request
  • 60+ contacts arrangement, including high density versions
  • Wide range of Defence applications; battlefield systems, ground vehicles, communications systems, naval, aircraft and space

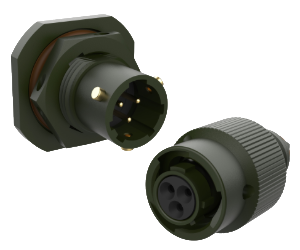

602GB Connectors:

  • Miniature bayonet lock, rear insertable and rear release crimp contacts
  • Qualified to MIL-DTL26482, DEF-STAN 59-56 and PAN 6432-1/4
  • Crimp termination with size 20, 16 and 12 contacts
  • Operating temperatures: -65˚C to +200˚C
  • Manufactured from Aluminium Alloy with Cadmium Olive Drab plating, available in Stainless Steel and Electroless Nickel finish
  • Wide range of defence applications including battlefield systems, ground vehicles, communications systems, industrial equipment, aircraft and factory automation

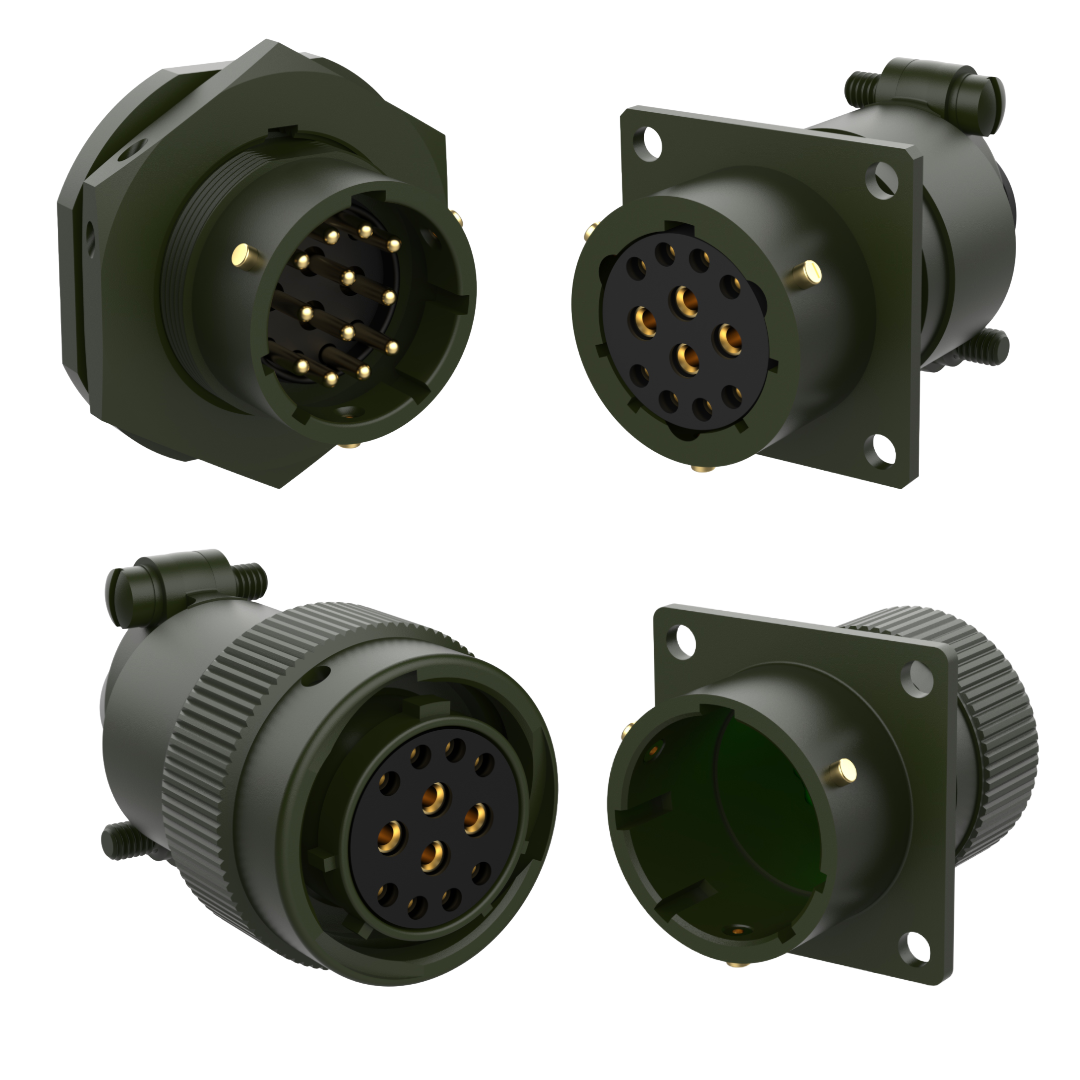

62GB Connectors:

  • Miniature bayonet connector, derived from MIL-DTL-26482
  • Aluminium alloy shell material as standard with plating options available
  • Wire gauge 24 AWG to 8 AWG
  • Operating temperatures: -55˚C to +125˚C
  • Moisture and corrosion resistant
  • Fully intermateable and intermountable with BS 9522 F0017, and MIL-DTL-26482 Series 1 (solder)
  • Special versions include ribbed coupling rings to enable operation when using protective clothing and lever versions where access to the connector is limited
  • Suitable for battlefield systems, ground vehicles, communication systems, industrial equipment and factory automation

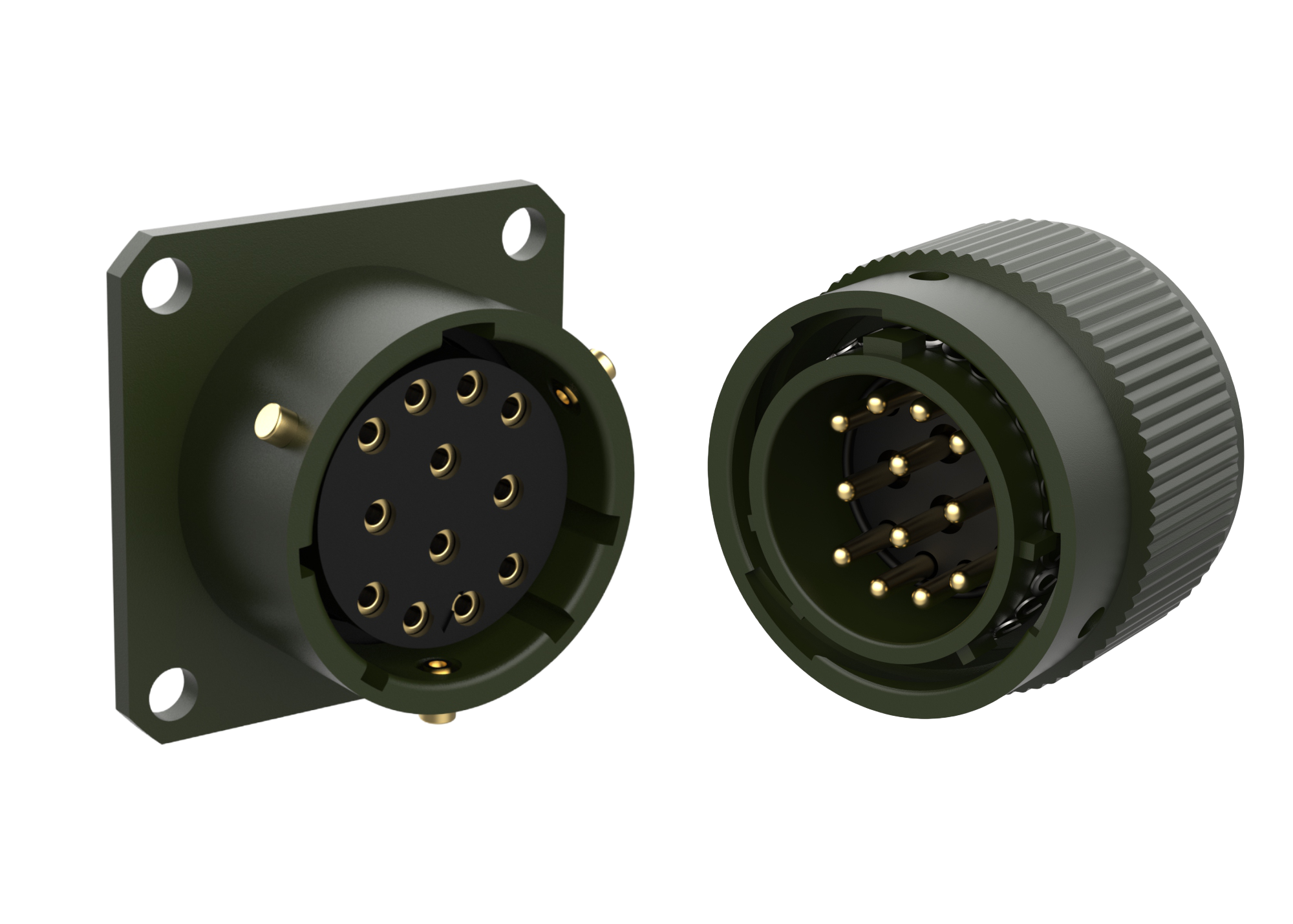

162GB Connectors:

  • Miniature fast bayonet lock coupling with front release contacts
  • Crimp termination with size 20,16 and 12 contacts
  • Operating temperatures: -55°C to +200°C (dependent on the plating finish)
  • Manufactured from Aluminium Alloy with Cadmium Olive Drab plating as default and alternate finishes on request
  • MIL-DTL-26482 qualification
  • Ideal for battlefield systems, ground vehicles, communications systems, industrial equipment, military aircraft and factory automation

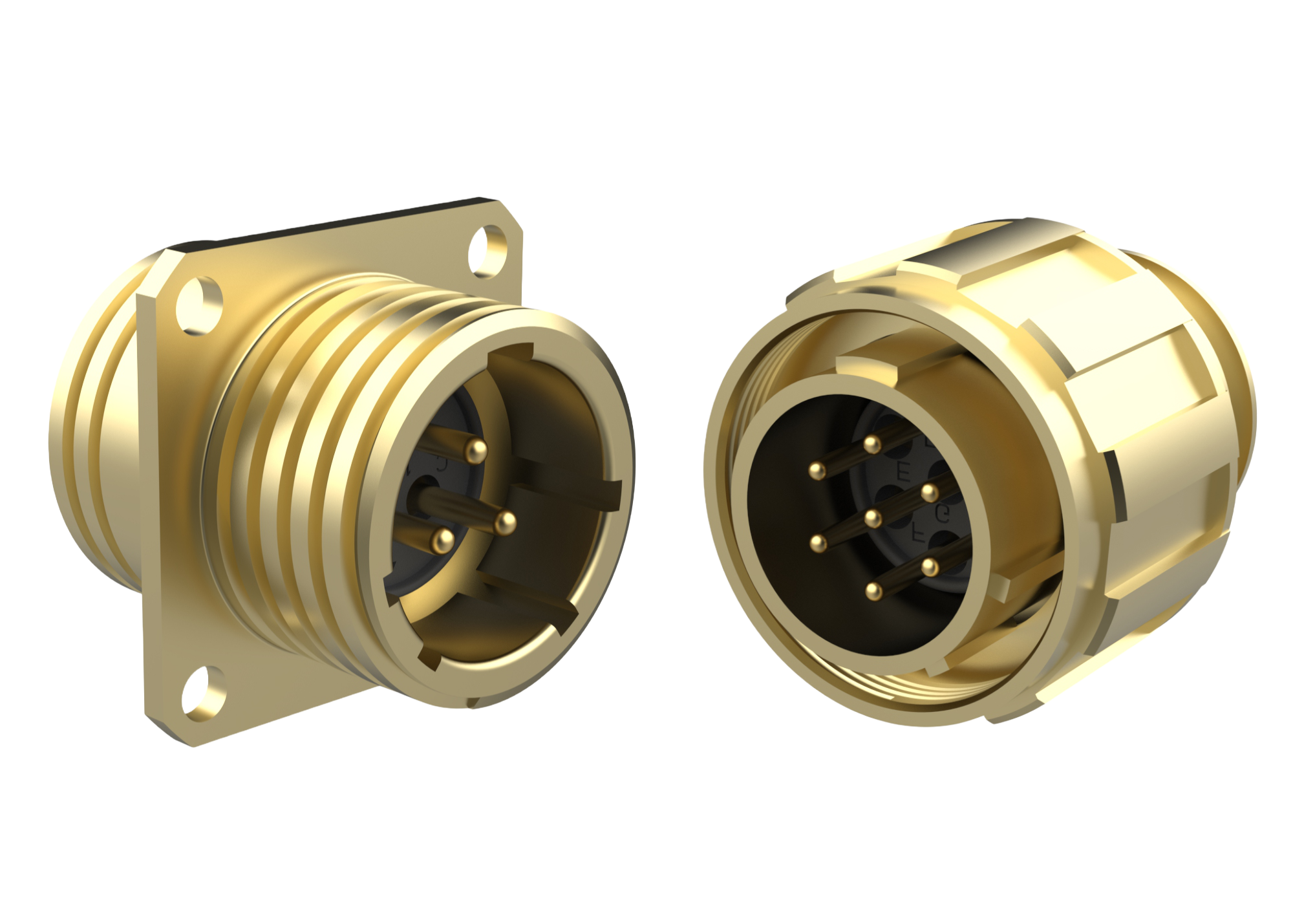

608 Marine Connectors:

  • Threaded anti-vibration coupling mechanism with high impact strength
  • Manufactured from Nickel Aluminium Bronze offering 1000 hours salt spray resistance
  • Crimp or solder contacts
  • Shell sizes 8 to 24 and up to 61 contacts
  • Operating temperatures: -55°C to +125°C
  • Suitable for Naval and Marine applications

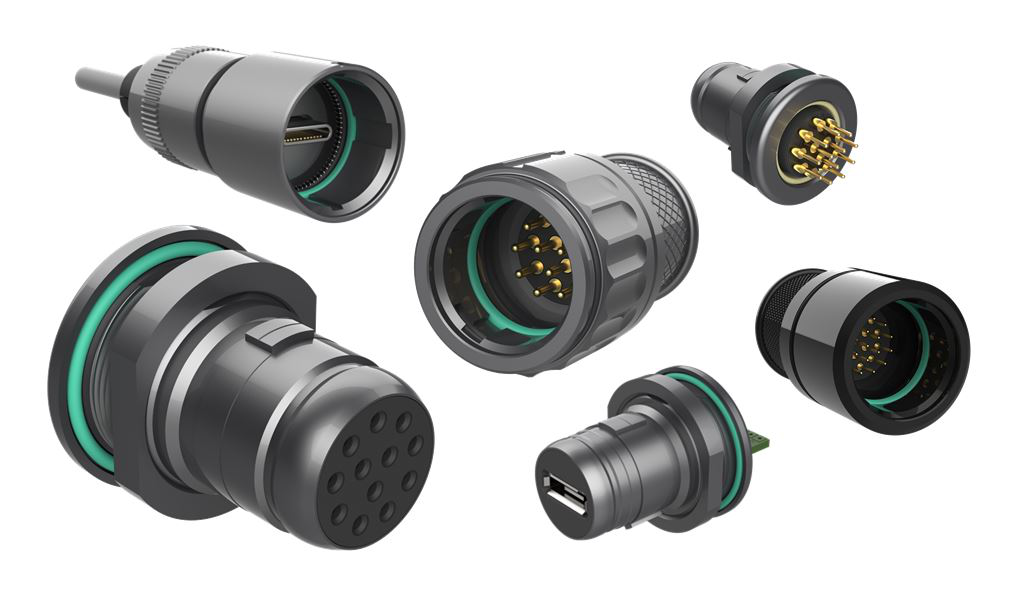

TERRAPIN:

  • Terrapin SCE2 miniature circular push-pull military connector
  • 7 – 37 contacts
  • Sealed to IP68, up to 20m immersion
  • Brass shell as standard, aluminium available
  • Black-silver plating offering corrosion resistance
  • Suited to battlefield communications, switches, routers and ruggedised laptops in harsh environments
  • Options within the series include integrated USB-C, Micro USB, Micro-SD card reader and lightweight and EMI filtered products

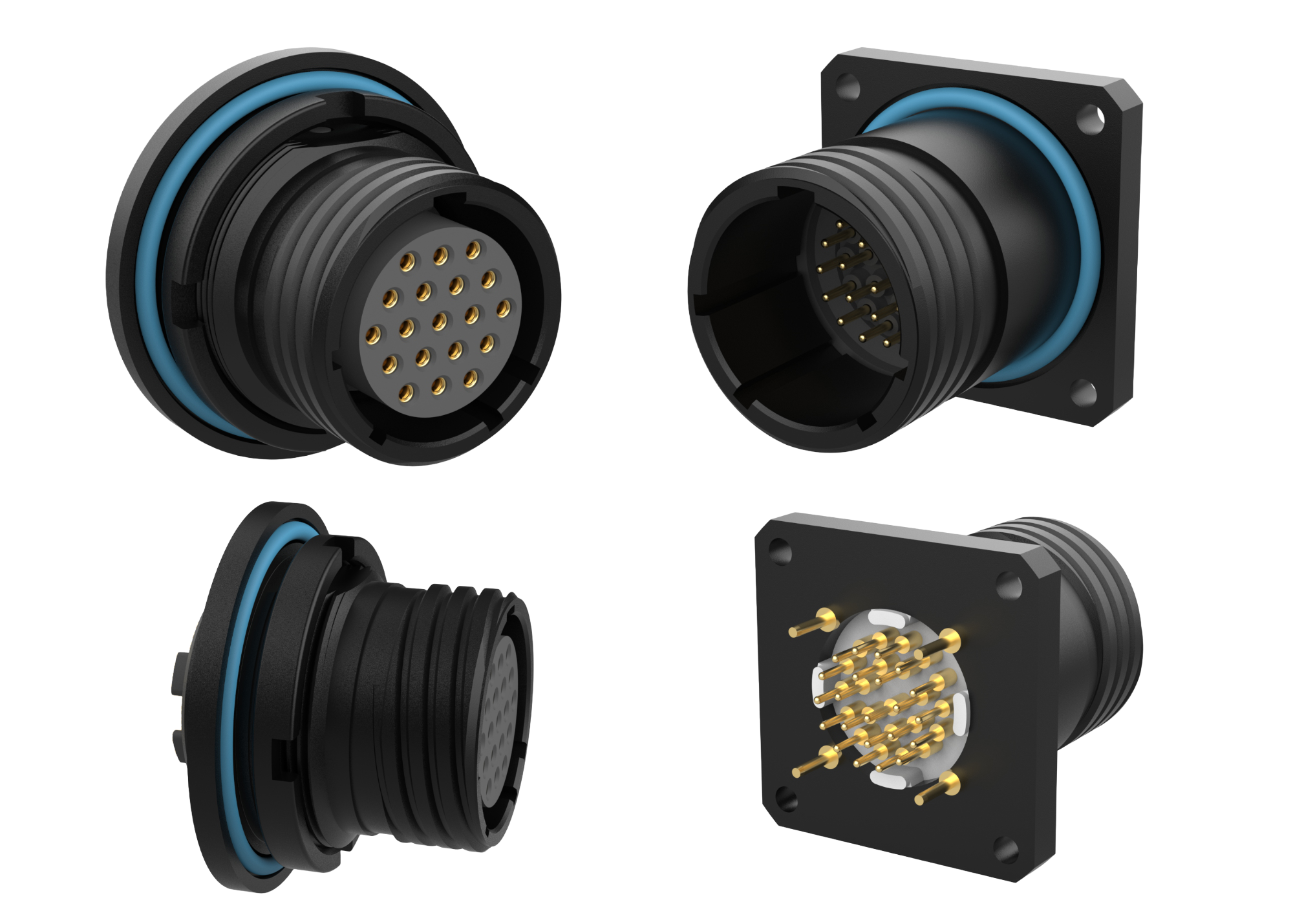

IGUANA:

  • Standard MIL-DTL-38999 interface and features
  • IP68 barrier sealed interface and RoHS compliant
  • Fully pre-loaded with PCB contacts, optional pre-tinned contacts
  • Reduced diameter flange on jam nut connectors
  • Range of materials and plating finishes including Black Zinc Nickel
  • Moulded integral PCB stand-offs
  • Optional alternate length pintail contacts at standard graduations
  • Suitable for ground vehicles, comms systems, displays, ruggedised computers and networks in harsh environments

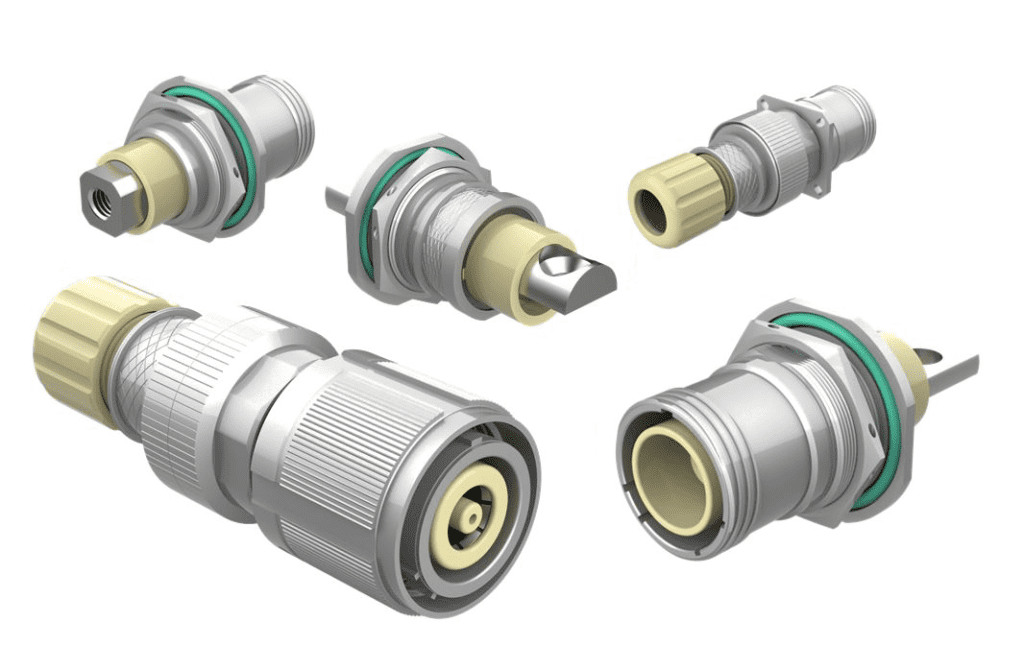

RAPTOR:

  • High voltage and high current applications
  • TALON high temperature contacts
  • Shell Sizes 15 to 25
  • Silver Plated Copper Contact and Nickel Plated Aluminium Connector housings
  • Improved insulation geometry for HV electric fields
  • Maximum Temperature 200°C (ambient plus electrical heating)
  • Designed for increased operating voltages at aircraft altitudes, suitable for E-Flight, E-VTOL and Hybrid aircraft
  • Comes with a Feedthrough option for semi-permanent installations

RHINO:

  • Rhino 38999 provides up to 1000A current capacity in a MIL-DTL-38999 style shell
  • Hyperbolic contact design with touch-protected contacts
  • Sealing (mated and unmated) IP69K, 1hr at 2 metres immersion and proof against high pressure steam jet cleaning
  • Salt spray resistance is plating dependent, eg 500hrs for Black Zinc Nickel
  • Operating temperature: –55˚C to +150˚C
  • MIL-DTL-38999 Series III design features
  • Ideal for military vehicles, aerospace, industrial automation, mining and offshore and harsh environments
  • Lite option comes with 40% weight reduction
  • Single Pole version available for EV applications and also with push-pull push-pull breakaway style shell
  • Rectangular and circular muti-pole variants

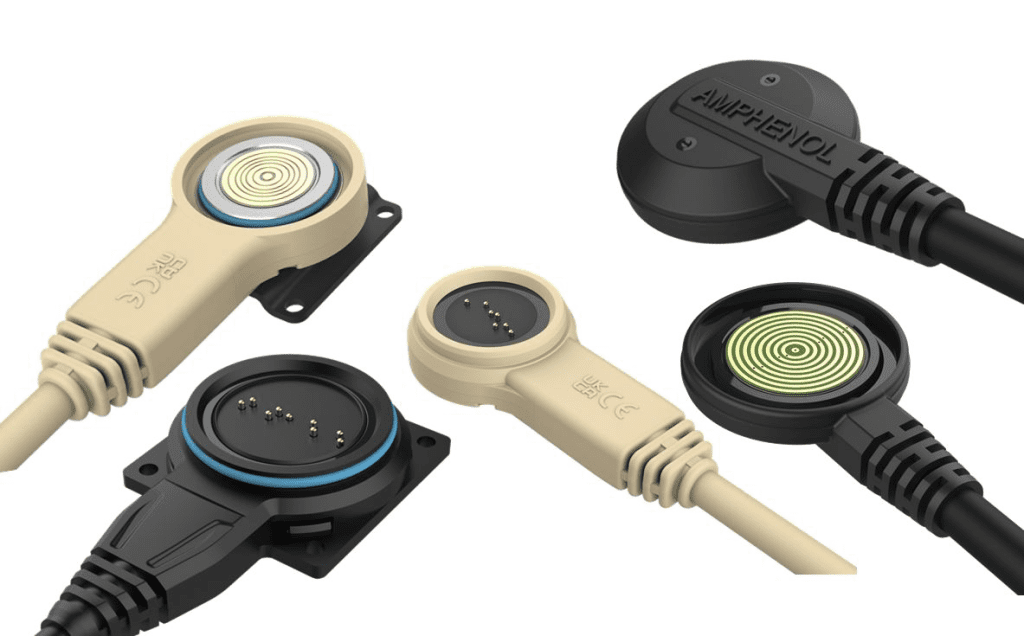

STINGRAY:

  • 360º quick mate and break, magnetic low profile connectors
  • Withstands moisture, dust, dirt and chemicals, STINGRAY 9 includes IP68 sealing: 1 hour at 2m immersion
  • Meets DEF-STAN 23-012, additionally STINGRAY 9 Meets DEF-STAN 00-35 requirements
  • Salt spray resistance is plating dependent, eg 500hrs for Black Zinc Nickel
  • MOLLE and wall mount accessories available
  • EMI shielded, 5A current rating, 90Ω USB 2.0
  • Ideal for soldier-worn and body-worn systems

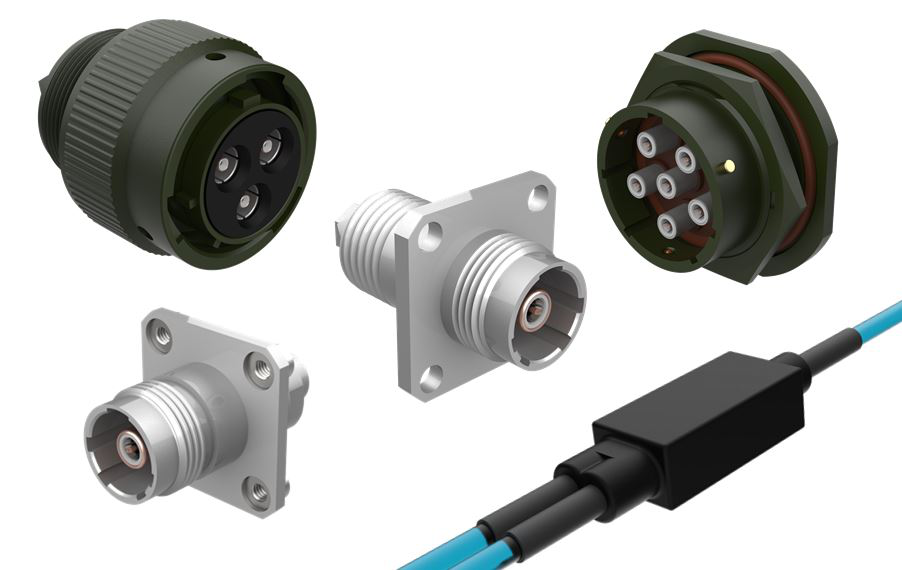

711 DATABUS:

  • A high density Data Bus Interconnection System designed for use with data transmission
  • Includes the 711 multi way bayonet coupled connector
  • Qualified to PAN 6486 and JN1033
  • Operates in temperatures from -55°C to 150°C
  • Single contact data bus connectors available
  • Works with 711 coupler assemblies providing transformer coupling between MIL STD-1553/ Def Stan 00-18 (Part 2) Data Bus and Single, Dual or Multiple Remote Terminals
