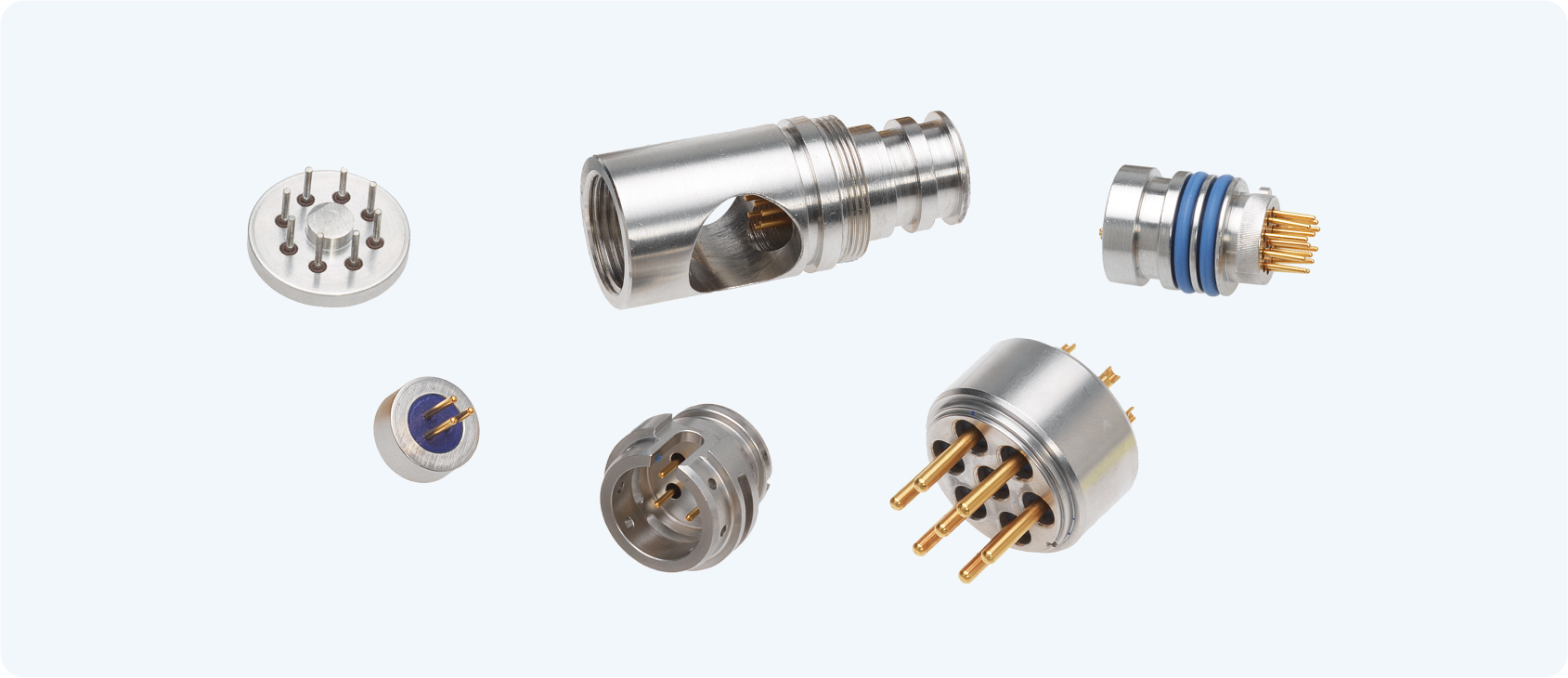

Amphenol Hermetic Connectors
Martec, an Amphenol company, design and manufacture hermetic 'glass to metal sealed' connector solutions. Hermetic connectors are vital in maintaining connectivity in critical conditions.
Their Mil-Spec hermetic connectors deliver exceptional performance for both general and harsh environment applications. Available in a wide range of Mil-Spec configurations, they provide reliable, high-integrity connections in the most demanding conditions.
Download the Amphenol Martec Hermetic Catalogue here:

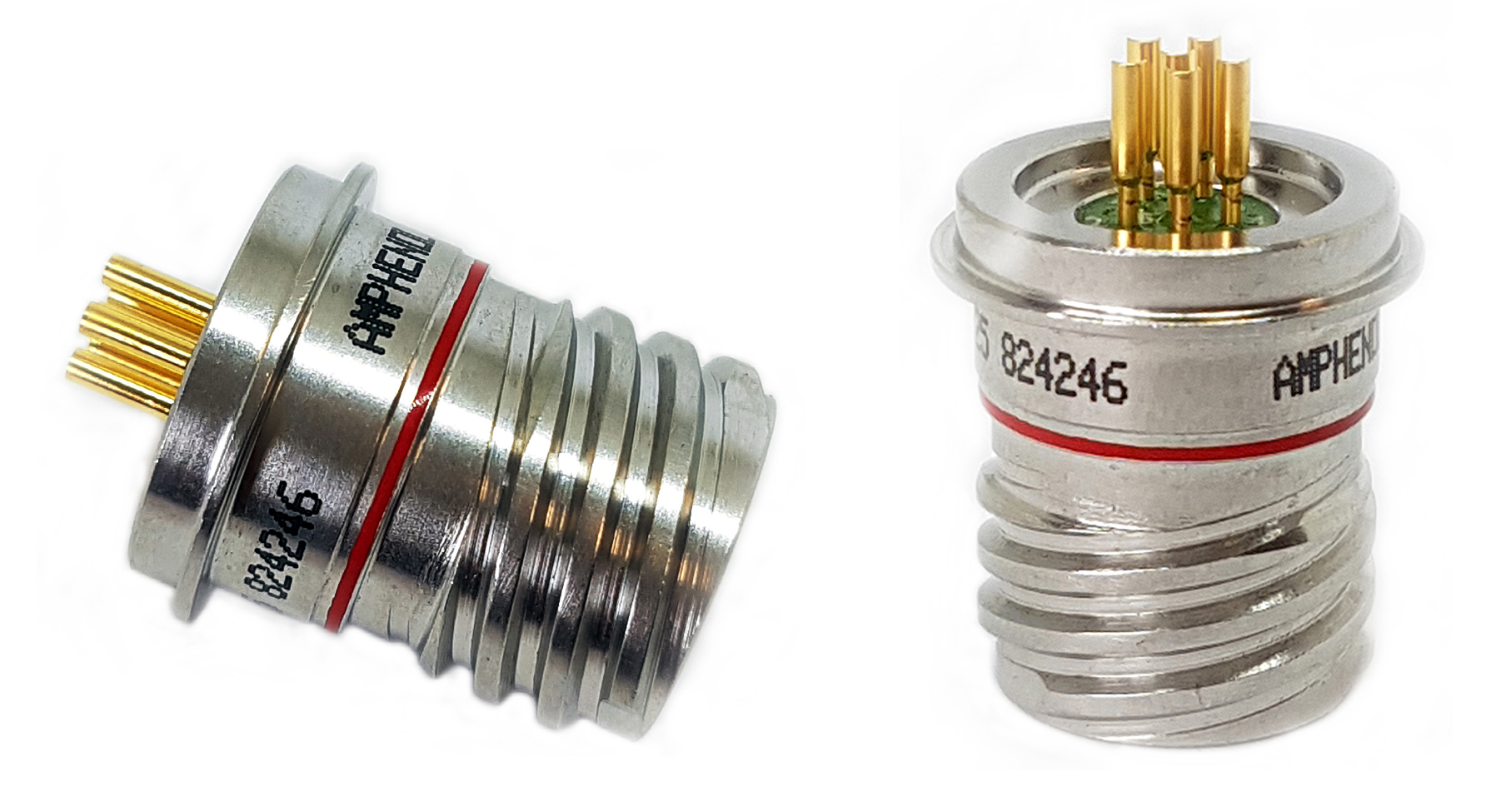

Hermetic D38999 series I, II, III:
- Meet or exceed MIL-DTL-38999 requirements
- Designed for the harshest and most demanding environments
- Operating temperatures: -65°C to +200°C
- 3 point bayonet lock system
- Moisture and Corrosion Resistance
- Hermetic air leakage limited to 1 X 10-7 cm3 per second

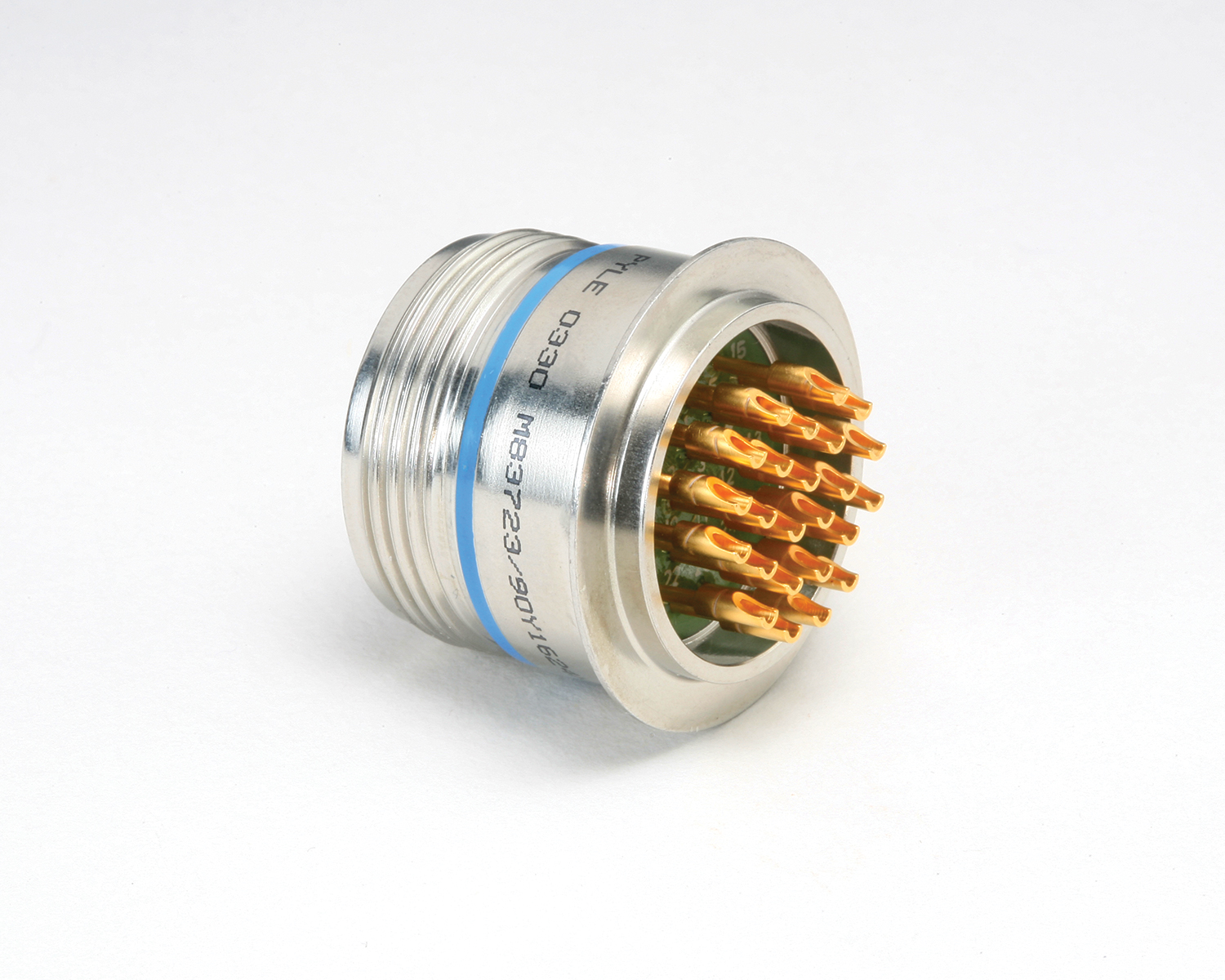

Hermetic MIL-DTL 83723:
- Developed for higher operating temperatures in high-performance aircraft and aircraft engines
- Qualified to MIL-DTL-83723, European: ASD† EN2997 and Manufacturer specification; Rolls Royce/SBAC: ESC10
- Available in threaded receptacles with solderwell or flat eyelet termination
- Operating Temperature up 260°C and fully functional for 1000 hours at 200°C (392°F) ambient. Internal temperature 238°C (460°F)
- Designed for environmental moisture sealing with fused compression glass sealed inserts

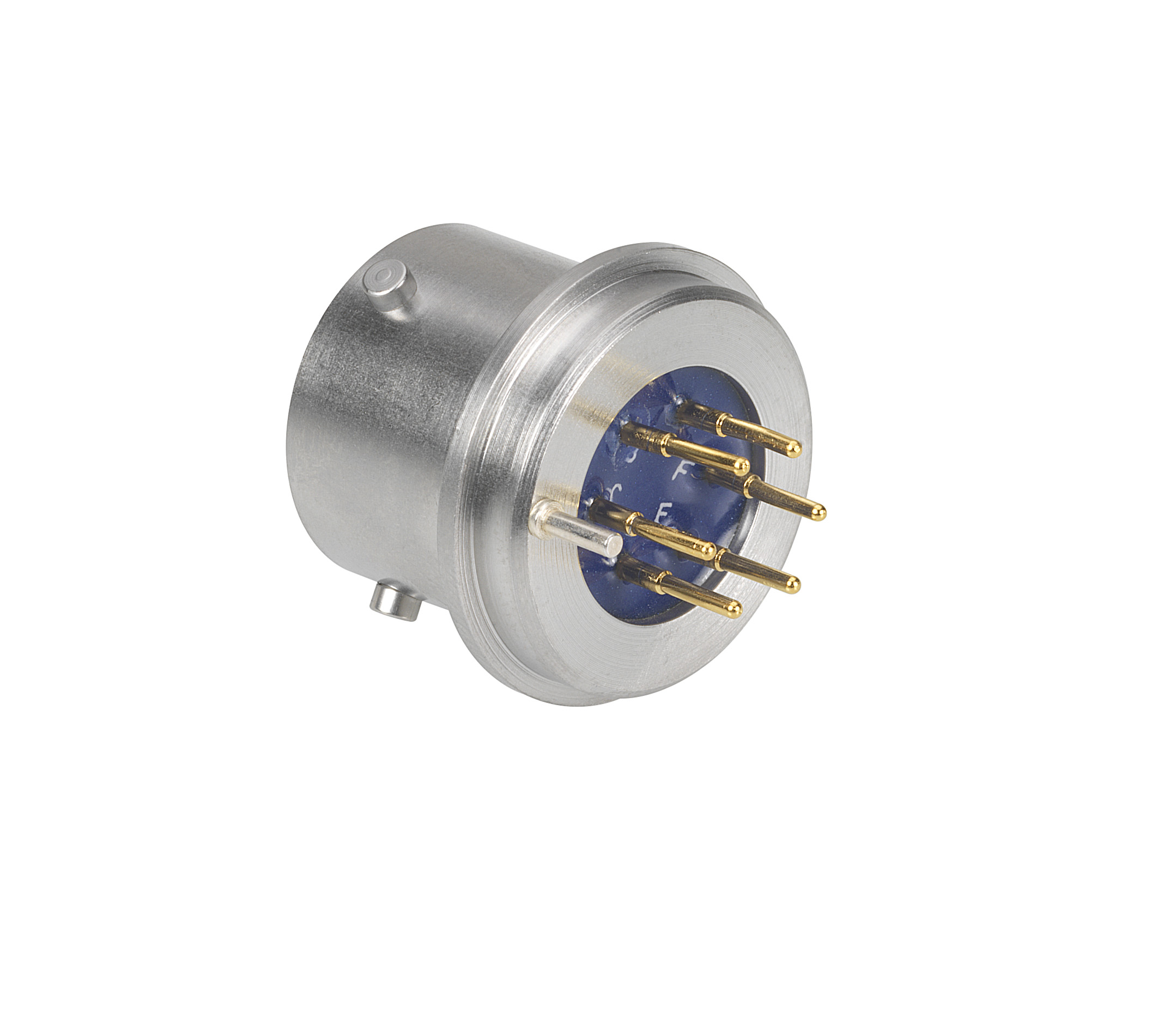

Hermetic 26482 Series I and II:
- Miniature circular bayonet hermetic connectors
- Operating temperatures: -55˚C to +200˚C
- Shell style for both series available: Square flange, Jam Nut or Solder Mount, and bespoke design flange
- Contact terminations available: Eyelet, Solder bucket, alternatively other non-standard pin termination also available at request
- Series I fully intermateable and intermountable with 62GB connectors, series II intermateable with 602GB connectors

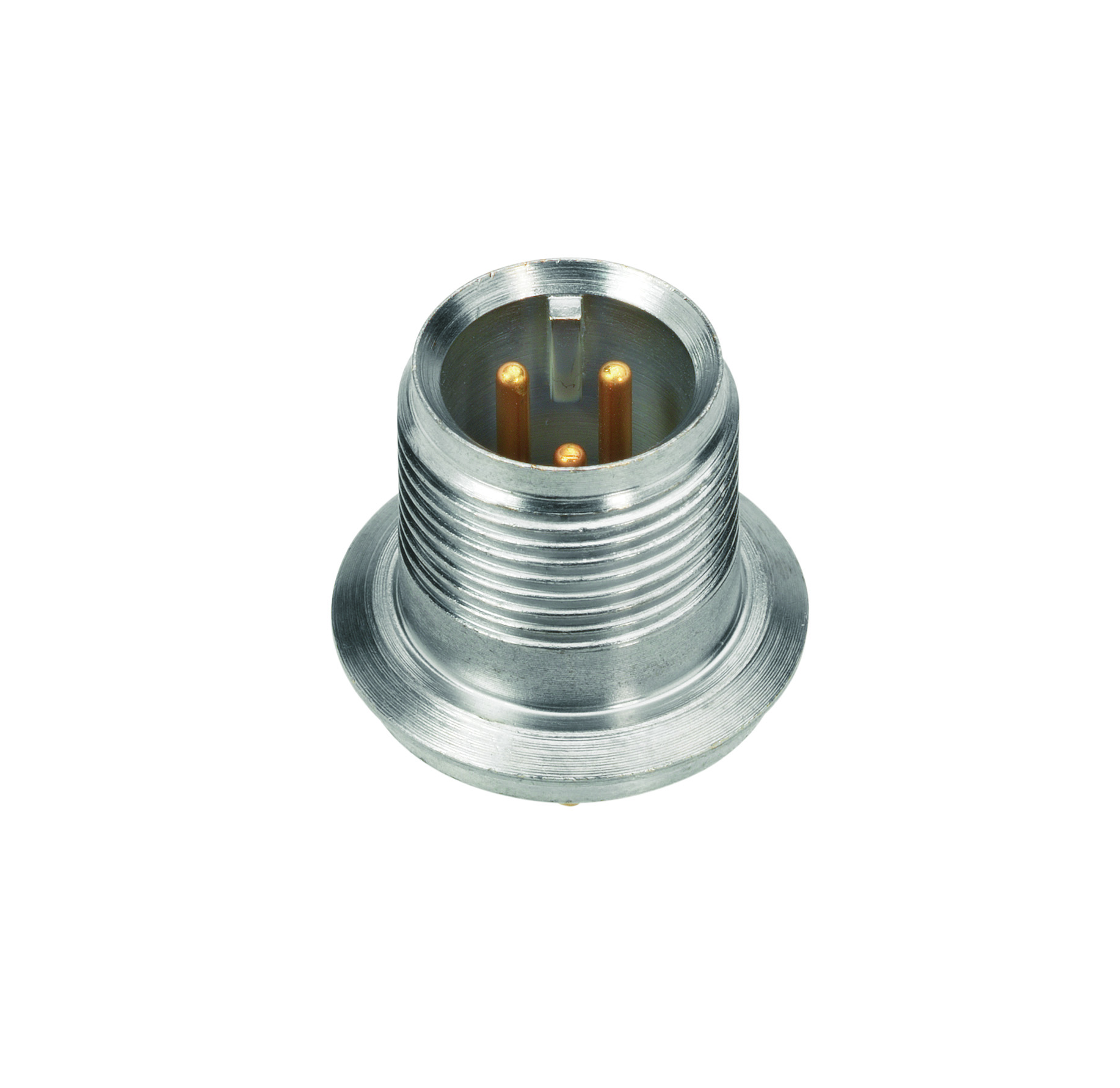

Hermetic MIL-C-50515:
- 172GB connectors designed to meet MIL-C-50515 requirements
- Contact terminations available: Eyelet, Solder bucket. Non-standard pin termination available on request
- Temperature range for mild steel housing from -55°C to 125°C and for stainless steel housing from -55°C to 200°C
